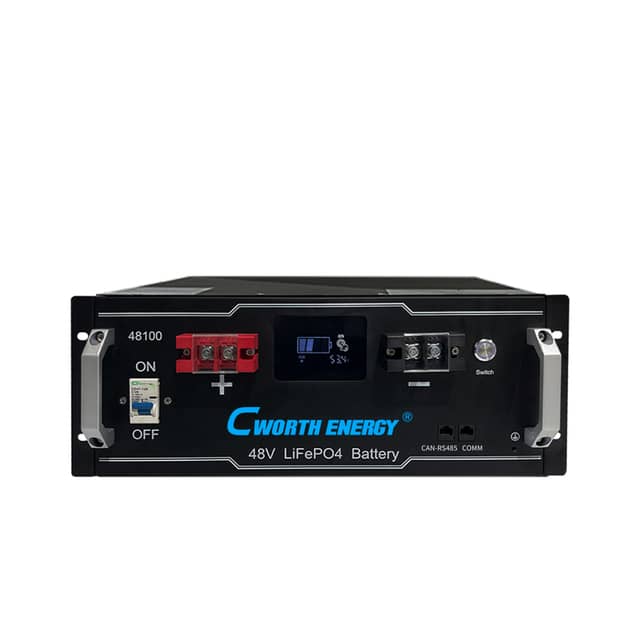

Cworth 5kWh LiFePO₄ Battery (LBT) – LBT‑48100

Description

Cworth LBT‑48100C Lithium Battery – Product Description
The LBT‑48100C is a high-performance 48 V lithium iron phosphate (LiFePO₄) battery providing 5 kWh of energy storage (51.2 V × 100 Ah). This robust unit is designed for demanding solar, inverter, backup, and hybrid power applications.
Key Specifications
Capacity: 5 kWh (100 Ah @ 51.2 V)
Nominal Voltage: 51.2 V (48 V system)
Voltage Range: 48 – 57.6 V; Charge cut‑off: 57.6 V; Discharge cut‑off: 48 V
Standard Charge/Discharge Current: ≤ 60 A; Max: 100 A
Continuous Output Power: ~3.1 kW; Peak Output Power: ~5.12 kW
Cycle Life: ≥ 6,000 cycles @ 80% DOD, 25 °C
BMS: Intelligent management with cell balancing; communication via RS485 / CAN
Ingress Protection: IP21; modular up to 6 units in parallel
Operating Temperature: –10 °C to 60 °C during discharge; 0 °C to 55 °C during charge
